There are two main reasons for adopting Formosa casters in industrial aluminum profiles: one is that Formosa casters have the characteristic of free movement, and the other is that the load-bearing performance of Formosa casters is better than that of flat casters, which is adapted to the needs of various frame structures. Formosa casters are available in two styles: wire rod and flat casters, which have similar functions but different installation methods. The following will elaborate the installation steps of Formosa casters on industrial aluminum profiles:
First of all, the installation method of the flat plate, according to the profile to choose the specifications of the slider nut and hexagonal bolts, the length of the bolt is also selected according to the profile, the nut is pre-buried in the groove pit, and the bolt is tightened directly through the flat plate with the holes above the plate and the nut holes aligned.

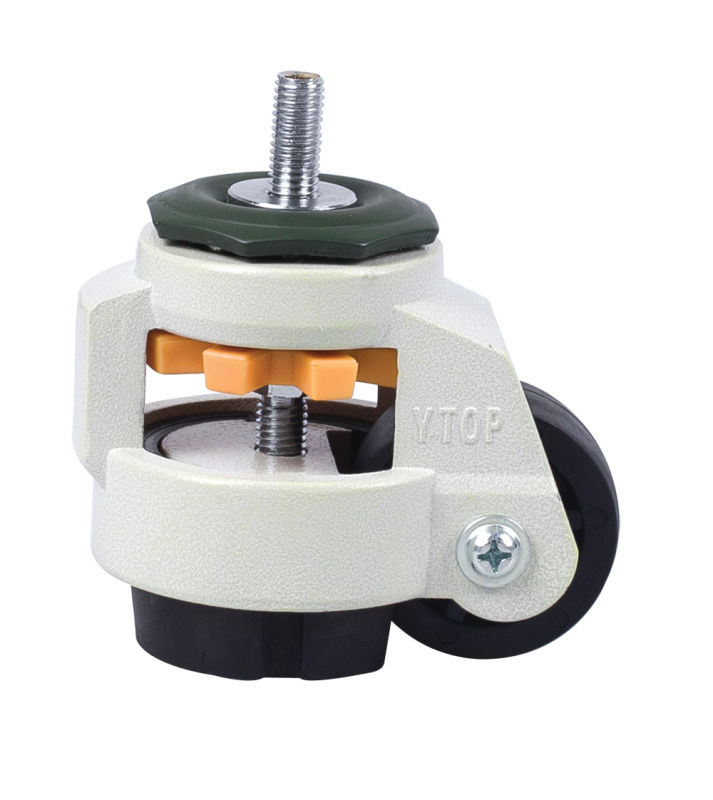

Screw caster installation will need to look at the selected profile end face is a flower hole or non-flower hole in order to nearly half of the arrangements for processing and installation, if it is a flower hole end face needs to be connected to the end face of the plate to do excessive, tapping directly screw the screw along the thread tightening. Non-fancy hole directly in the profile end face tapping will be aligned directly tighten the screw.
